VistaCam iX – one camera, many options

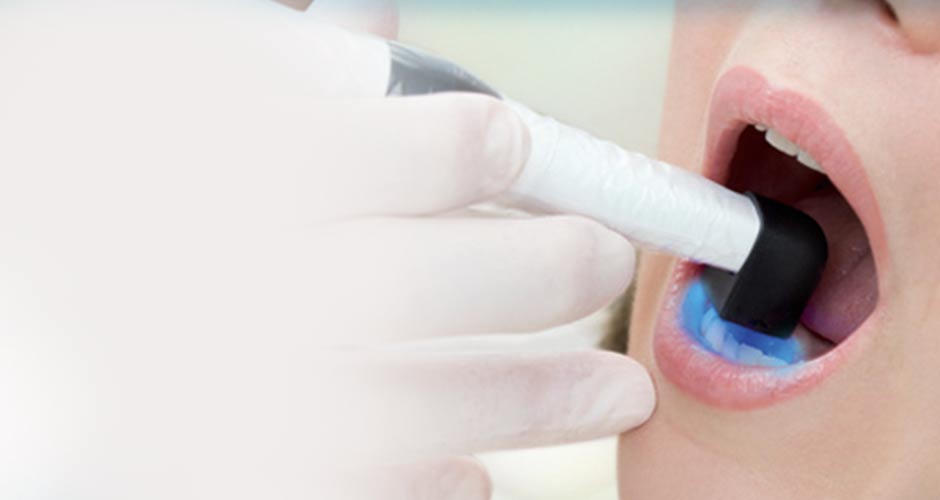

The intraoral camera meets the highest requirements for fully digital transmission with its depth of field and image quality. The intelligent, interchangeable head mechanism provides various application options. Whether macro or intraoral images, VistaCam iX supports you in caries diagnosis, early detection and plaque visualisation. Caries and plaque filters in the imaging software DBSWIN show caries activity by means of a colour scale and numeric evaluation. The new Proxi interchangeable head allows for detection of proximal caries – without exposure to radiation. The Poly interchangeable head with the latest LED technology and soft-start function is well suited for light curing all common dental materials.

* Macro & Poly heads sold separately.

Screen Shot 2014-08-28 at 2.28.15 pm

durr-vistacam-ix-heads

Technical Data VistaCam iX Camera
Connections USB 2.0
Freeze frame module On PC/Laptop
Multi-user application Plug & Play, cable can be connected to handpiece
Activation Handpiece (optional foot switch)
Handpiece weight 50 g (without cable)
Handpiece length 190 mm
Power supply USB (5V)
Transmission path USB 2.0, via cable (2.5 m)
VistaCam iX Poly Interchangeable Head
Usage Head for light curing
Light source Power LED
Wavelength 460 nm (+ 10 nm)
Light intensity 1,000 mW/cm2
Diameter lens 10 mm Ø
Cable length 250 cm
Power unit 12 V DC at 1.0 A
Polymerisation depth Depending on type, colour and translucence of composites
VistaCam iX Cam Interchangeable Head VistaCam iX Macro Interchangeable Head VistaCam iX Proof Interchangeable Head VistaCam iX Proxi Interchangeable Head
Usage High quality intraoral images Highly magnified intraoral images For caries & plaque detection on smooth surfaces For detection of interproximal caries
Resolution 470,000px 470,000px 470,000px 470,000px
Object distance 5 – 35 mm (depth of field 30 mm) 3 mm (120 x magnification) 10 mm fixed, with spacers 7 mm fixed with positioning holder
Lighting 8 LEDs (white) 8 LEDs (white) 4 LEDs (405 nm, violet) 2 LEDs (850 nm, infrared)
Optical system Glass lens, tempered Glass lens, tempered Glass lens, tempered Glass lens, tempered



View the Brochure

View the Dürr VistaCam iX brochure

View the Brochure

durr-vistacam-digital

VistaCam Digital – the camera with ergonomic 360 degree capture ring

The VistaCam Digital is fitted with an all purpose control sensor that enables the optimum use of the Still/Live and Save functions in every single image-capturing scenario. Even in the molar area of the upper jaw, the VistaCam Digital saves really high-quality images with no blurring – the operator turns the camera, not his or her hand: The sensitive control function confirms movements in a way that can be felt on the handpiece. The level of sensitivity can be adapted to meet the needs of the specific operator.

Technical Data VistaCam Digital VistaCam CL.iX
Depth of field Intraoral 24mm, for structures to 60 μm Intraoral 24mm, for structures to 60 μm
Image presentation True-sided or reversed via PC/Laptop True-sided or reversed via camera setting
Freeze frame module On PC/Laptop On PC/Laptop
Multi-user application Plug-and-play, detachable with USB-Y adapter Channel can be selected
Channels Choice of 5
Radio transmission 5.8 GHz ISM band (licence-free)
Transmission path In scope of delivery, 2.8 m + 0.2 m extension via USB repeater Designed for 1 patient room or for mobile use
Activation Handpiece (optional foot pedal) Handpiece (optional foot pedal)
Battery operation Enables up to 45 minutes of operating time
Weight (g) 200 150
Handpiece length (mm) 207 213
Power supply USB Y adapter without power unit NiMH rechargeable battery pack
Battery charger Intelligent design with charge state display
Connections USB 2.0 USB 2.0



View the Brochure

View the Dürr VistaCam brochure

View the Brochure

VistaCam CL.iX – the radio camera that provides wireless freedom

Cables, foot pedals, and fixed devices can slow down the work flow during everyday tasks in the surgery. Here, the VistaCam CL.iX sets new standards for motion and flexibility. The wireless intraoral camera allows the operator to work ergonomically using a manual capture ring or foot pedal. The images are sent to a laptop or PC via radio data transmission and are stored there.

The VistaCam CL.iX combines the image quality of Dürr Dental IFC optics with the convenience of mobility. Its usage possibilities range from diagnostics in the treatment chair to patient communication via software-supported documentation.

Technical Data VistaCam Digital VistaCam CL.iX
Depth of field Intraoral 24mm, for structures to 60 μm Intraoral 24mm, for structures to 60 μm
Image presentation True-sided or reversed via PC/Laptop True-sided or reversed via camera setting
Freeze frame module On PC/Laptop On PC/Laptop
Multi-user application Plug-and-play, detachable with USB-Y adapter Channel can be selected
Channels Choice of 5
Radio transmission 5.8 GHz ISM band (licence-free)
Transmission path In scope of delivery, 2.8 m + 0.2 m extension via USB repeater Designed for 1 patient room or for mobile use
Activation Handpiece (optional foot pedal) Handpiece (optional foot pedal)
Battery operation Enables up to 45 minutes of operating time
Weight (g) 200 150
Handpiece length (mm) 207 213
Power supply USB Y adapter without power unit NiMH rechargeable battery pack
Battery charger Intelligent design with charge state display
Connections USB 2.0 USB 2.0



View the Brochure

View the Dürr VistaCam brochure

View the Brochure
